5,000-lb. CAPACITY / 24" LIFTING HEIGHT / 70" FRAME LENGTH

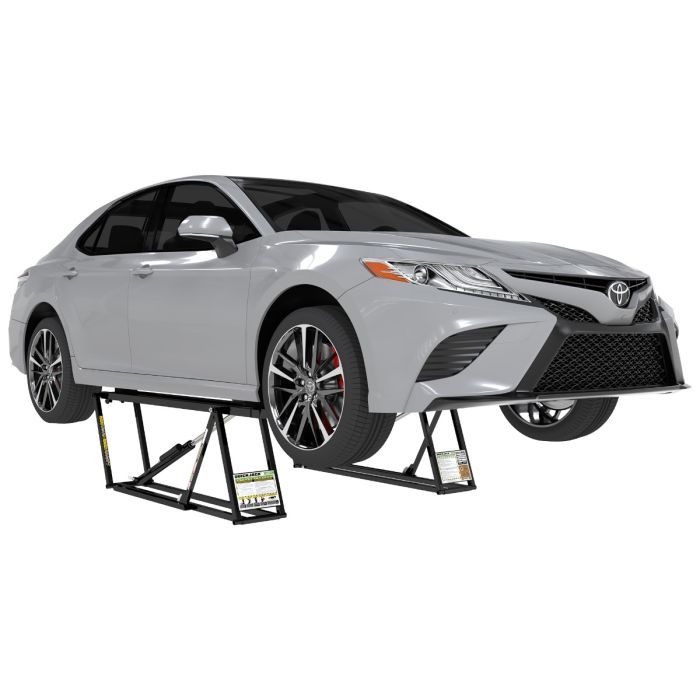

The QuickJack 5000TL portable car lift adds an extra 3" bringing the lifting height to an impressive 24 inches. This enhancement increases access to the undercarriage of the vehicle and provides an overall increase to your comfort and capability.

description

QuickJack is constantly improving and evolving to fit your automotive needs in the garage or on the track. The 5000TL is the highly-anticipated sequel to the most popular automotive tool to ever hit the home garage or auto repair shop. With the ability to lift an extra 3-inches, the 5000TL portable car lift provides more room to tackle every repair and maintenance task on vehicles weighing up to 5,000-lbs. Through superior engineering and design, BendPak has been able to produce an extra 3-inches of lifting height without sacrificing the overall dimensions that has made QuickJack a must-have in your garage. 5000TL still has an impressive 3" lowered height, 70" overall length, and 11" overall width.

Lifting capacity

5,000 lbs. (2,268 kg)

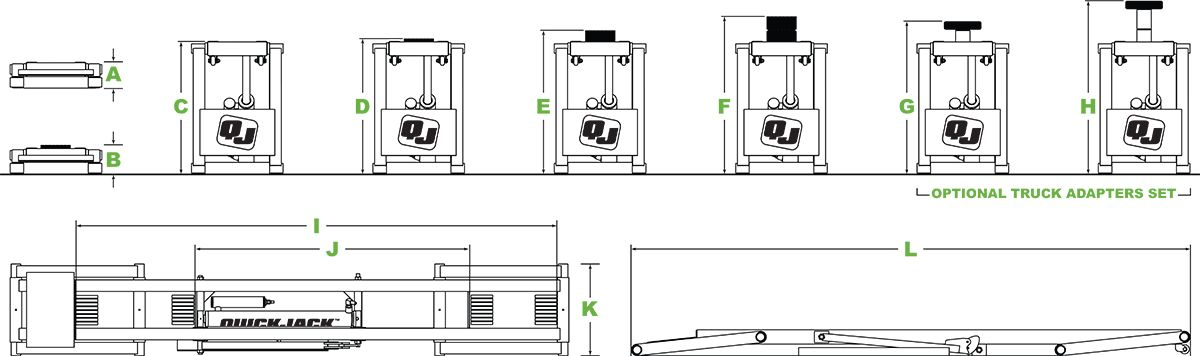

Lowered height

A - Frame only: 3" (76 mm)
B - With 2" block: 3.5" (89 mm)

Lifting height

D - With 2" block: 21" (521 mm)
E - With 3" block: 22" (546 mm)
F - Max. height: 24" (616 mm)
G - With adapters: 24" (597 mm)
H - With adapters + pin: 26.75" (673 mm)

Lift point spread

I - Maximum: 60" (1,524 mm)
J - Minimum: 37" (940 mm)

Frame dimensions (ea.)

K - Width: 11" (278 mm)
L - Length: 70" (1,778 mm)
A - Height (lowered): 3" (76 mm)
Weight: 78 lbs. (35 kg)

Other specs

Time to full rise: 30 seconds
Power unit weight: 15 lbs. (7 kg)
Shipping dimensions (ea. frame):
73.5" (L) x 15.25" (W) x 5" (H)
(1,869 mm x 385 mm x 129 mm)
Shipping weight: 240 lbs. (109 kg)
