12,000 lb. Capacity / Clearfloor / Extended Height

 192" Height, 155" Width, 69" Rise

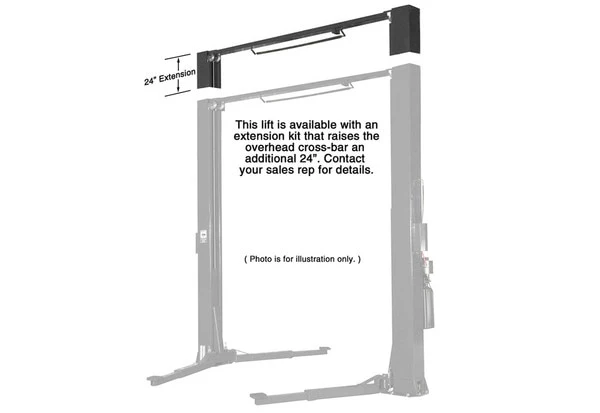

The XPR-12CL 192 is just as feature rich as the XPR-12CL but with a 24" bolt-on extension, making servicing taller vehicles much more viable. With it's Clearfloor design, which offers enough space for cars and trucks up to 12,000 lbs and the pure Direct-Drive performance, the XPR-12CL 192 is packed with cutting-edge technology and top-of-the-line materials. The XPR-12CL 192  two-post lift can easily raise your largest full-sized pickups and commercial vehicles - especially with it's 24" bolt-on extension. This is truly a well-rounded, multi-purpose lift.

✓ Extended Warranty Available

Manuals

• Sales Sheet
• Manual

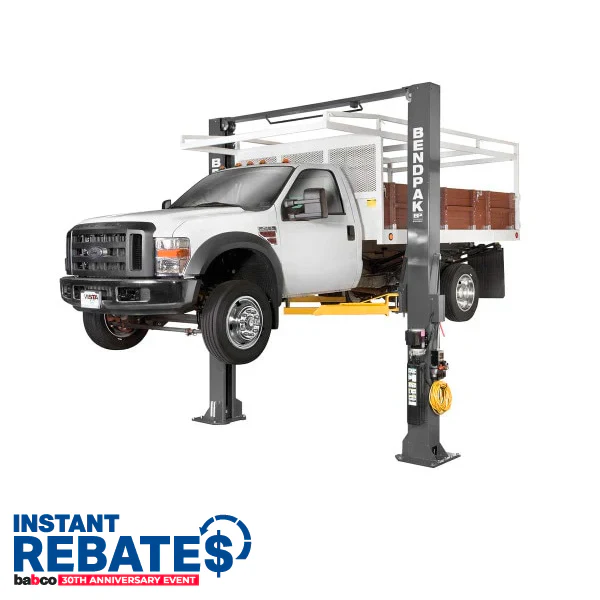

BendPak XPR-12CL-192" Extended Height Two Post Lift

The safe and rugged XPR-12CL-192 two-post lift features extended height columns for added overhead clearance and an adjustable top beam to accommodate wide or narrow installation set-ups. The highly sophisticated yet simple and dependable XPR-Series design requires very little service or maintenance for an overall lower cost of ownership.

Features

• 12,000-lb. lifting capacity
• 192" lifting height
• CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493
• Padded overhead safety shutoff bar
• Extended height top-beam provides greater overhead clearance
• Single-point safety release
• Dual direct-drive hydraulic cylinders
• Dual-synchro equalization system for equal lifting
• Oversized 53" tall carriage for superior strength and durability
• Electric / hydraulic power system
• Oversized A36 steel base plates
• Self-lubricating dura-glide UHMW polyethylene bearing system
• Safety locks in each column spaced every 3"
• Plated arm restraints and arm pins for rust prevention
• Heavy-duty 1/2" aircraft-quality equalizer cables
• Oversized cable sheave diameter reduces cable fatigue
• Durable, rubber lift pads with stackable adapters
• 16-piece specialty adapter set includes four 6" stackable adapters, four 3" stackable adapters, four polyurethane contact pads and four frame cradle pads
• Convenient storage is included for truck and van adapters
• Triple-telescoping arms provide increased range for lifting point access
