10,000 lb. Capacity / Adaptable Clearfloor / Adjustable Width / Screw Pads / High-Rise

157" Height, 135" - 145" Width, 75.5" Rise

The next generation of two-post lifts - now with an increased height! The 10AP Series is built with the future in mind, and has all the features you'll need to service vehicles as effectively as possible. This revolutionary lift can handle Electric Vehicles effortlessly and can adapt to both symmetrical and asymmetrical configurations. This BendPak 10-APX is the taller version of the BendPak 10-AP.

✓ Extended Warranty Available

Manuals

• Manual | Part 1 of 2
• Manual | Part 2 of 2

Features

• Durable powder coat finish
• Expandable top beam accommodates wide or narrow drive-thru configurations
• Double-telescoping screw pads offer increased versatility
• Padded overhead safety shutoff bar

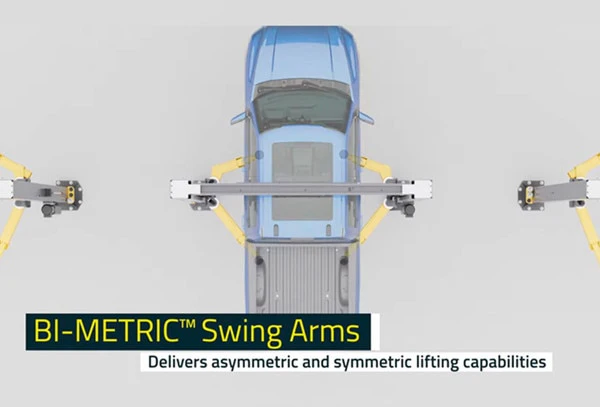

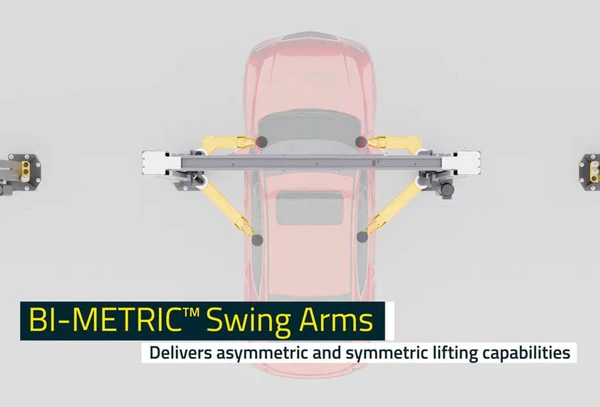

• Exclusive Bi-Metric™ arm design for more versatile arm positioning
• Single-point safety release
• 13.5" x 19.5" foot size of post

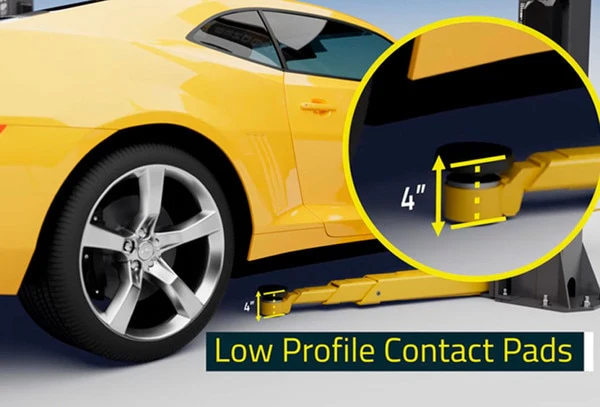

• Drop-end arms provide a lower pad height
• Dual hydraulic direct-drive cylinders
• Oversized 59" tall carriage for superior strength and durability
• Electric / hydraulic HVLP power system
• Self-lubricating dura-glide UHMW polyethylene bearing system
• Safety locks in each column spaced every 3"

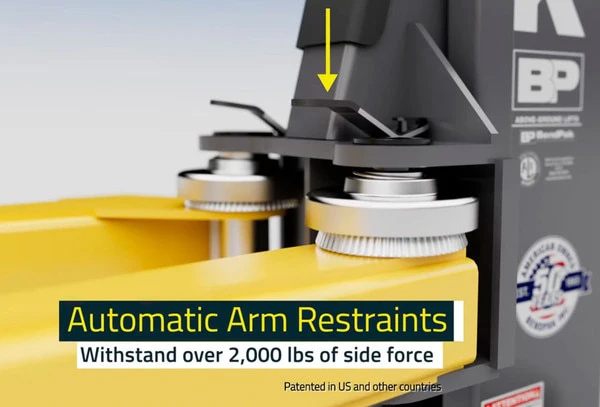

• Automatic arm restraints withstand over 2000-pounds of side force
• Heavy-duty 1/2" aircraft-quality equalizer cables
• Oversized cable sheave diameter reduces cable fatigue
• Four triple-telescoping arms
• ALI certified
