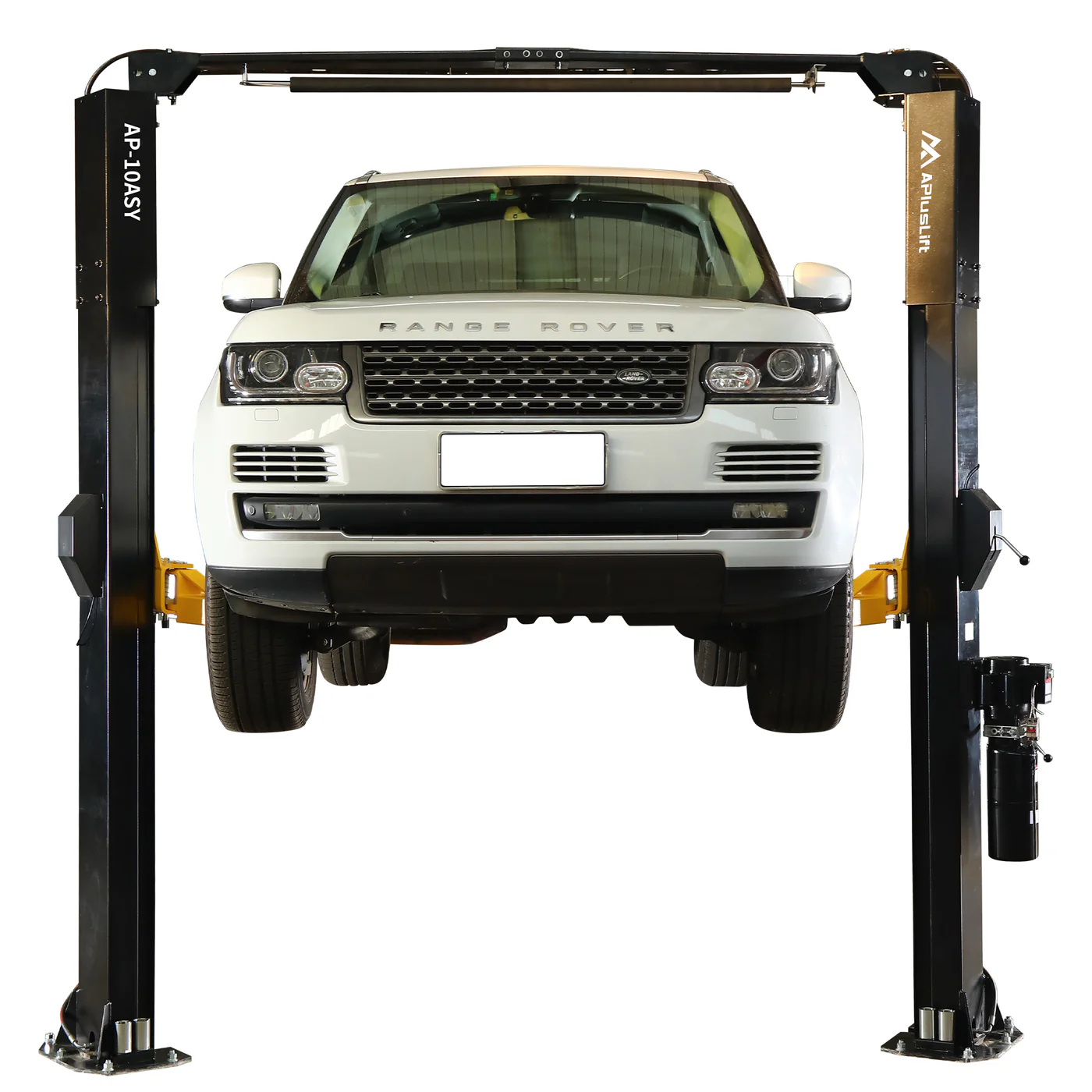

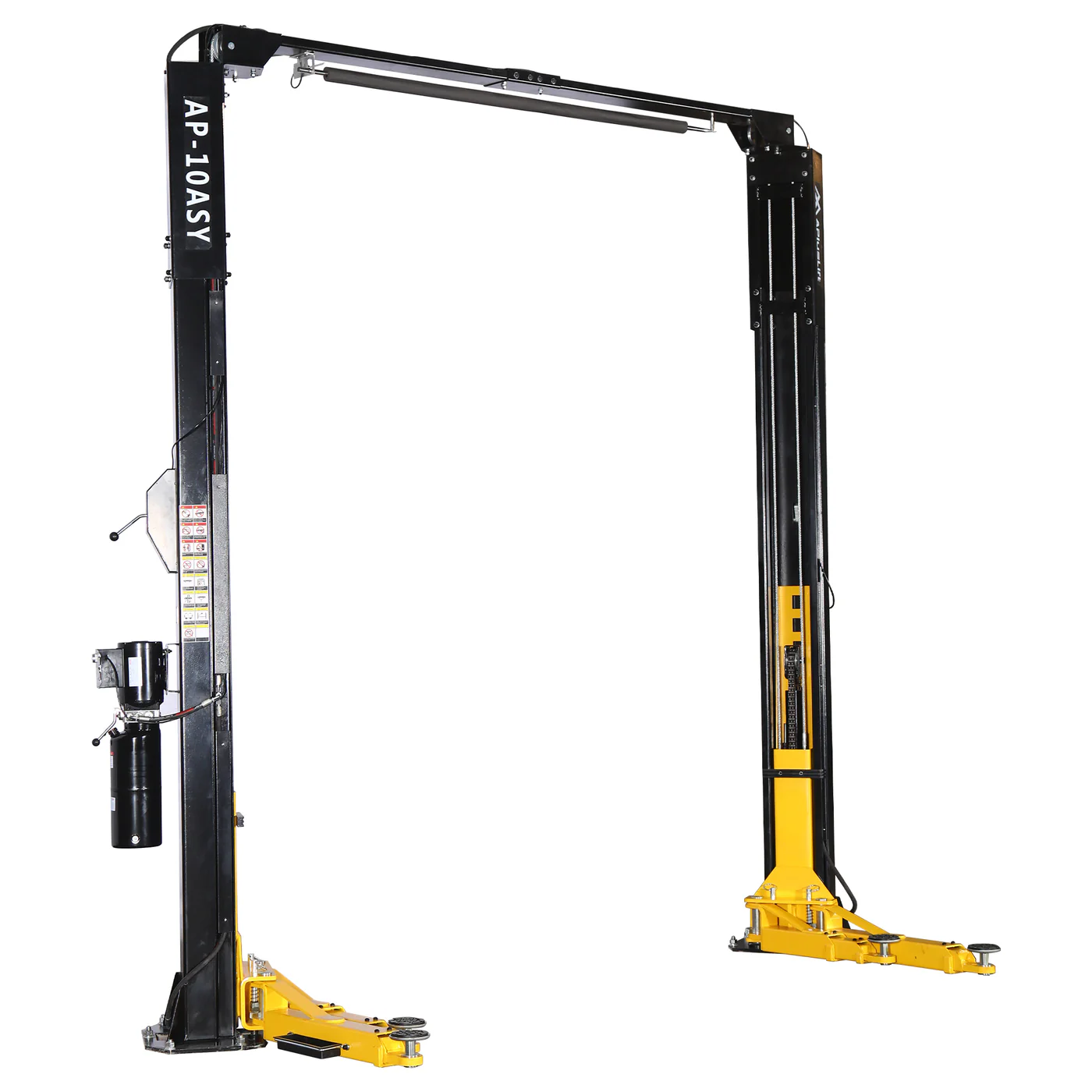

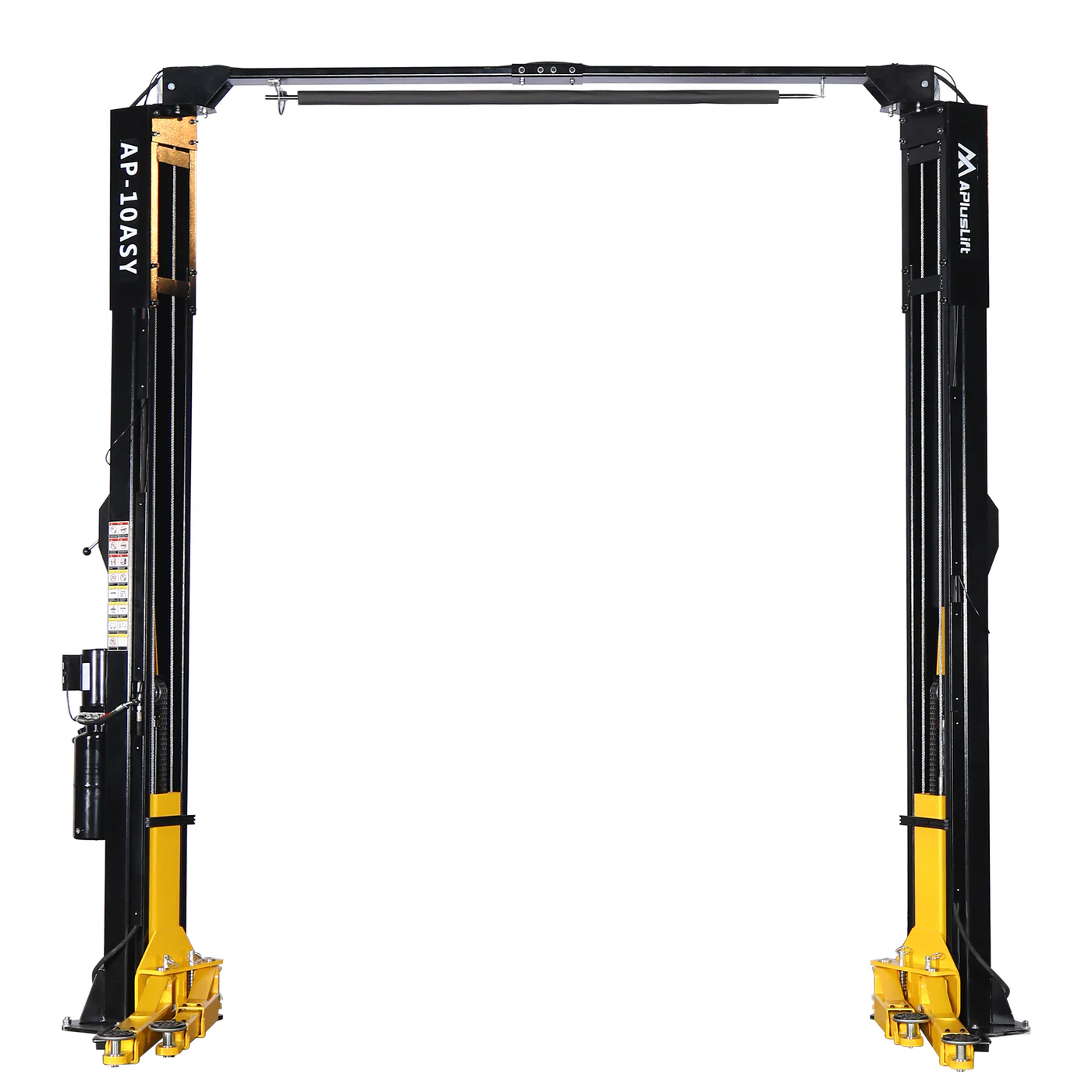

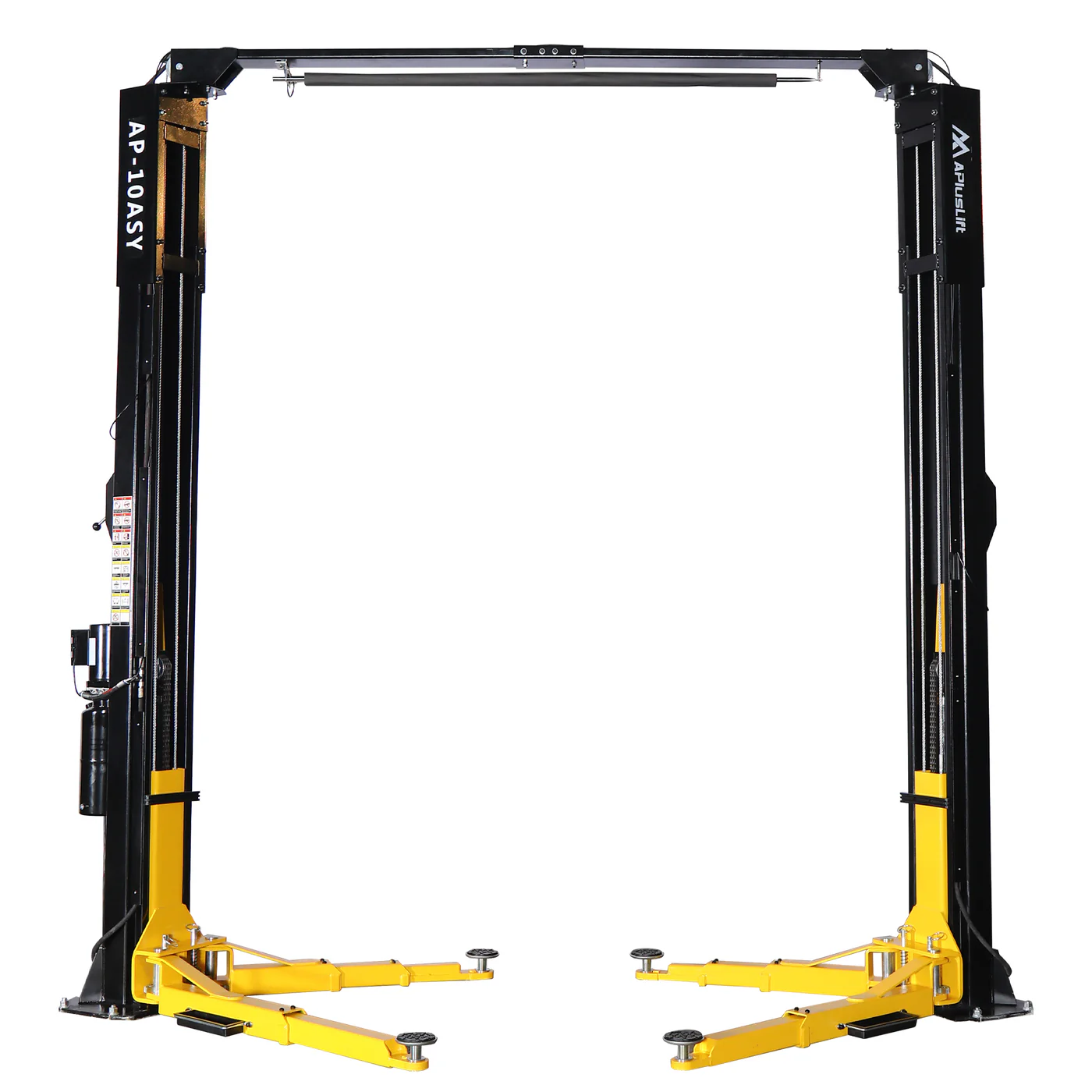

APlusLift HW-10ASY 10,000LB 2-Post Overhead Symmetrical & Asymmetrical Single Release Car Lift

3-Year Warranty | Symmetrical & Asymmetrical Install | CE Certified

The APlusLift HW-10ASY is a heavy-duty, high-performance 2-post overhead car lift that offers both symmetrical and true asymmetrical installation options — giving you ultimate flexibility based on your workspace and vehicle access needs.
This upgraded model enhances the bestselling HW-10KOH-A and AP-10SR designs by introducing a single-point safety lock release and the ability to rotate columns 30 degrees for true asymmetrical access, making door entry and vehicle positioning easier.

Built for 10,000LB lifting capacity, the HW-10ASY is a perfect fit for home garages, commercial workshops, and professional service centers.

Key Features:

• 3-Year Industry-Leading Warranty — $499 value included!

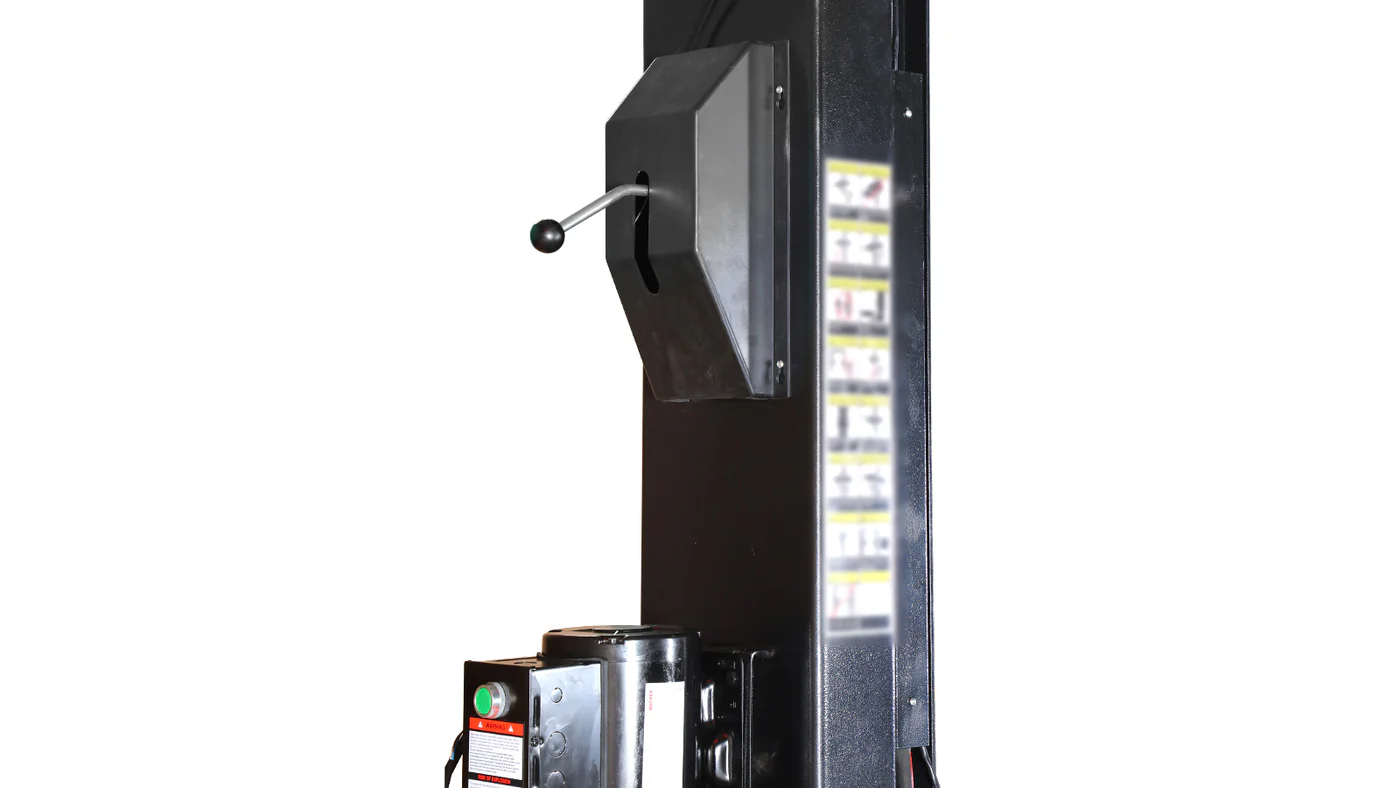

• Single-Point Safety Lock Release — Easy operation from one side.

• Symmetrical or True Asymmetrical Installation — Columns can face straight or be rotated 30° for easier door access.

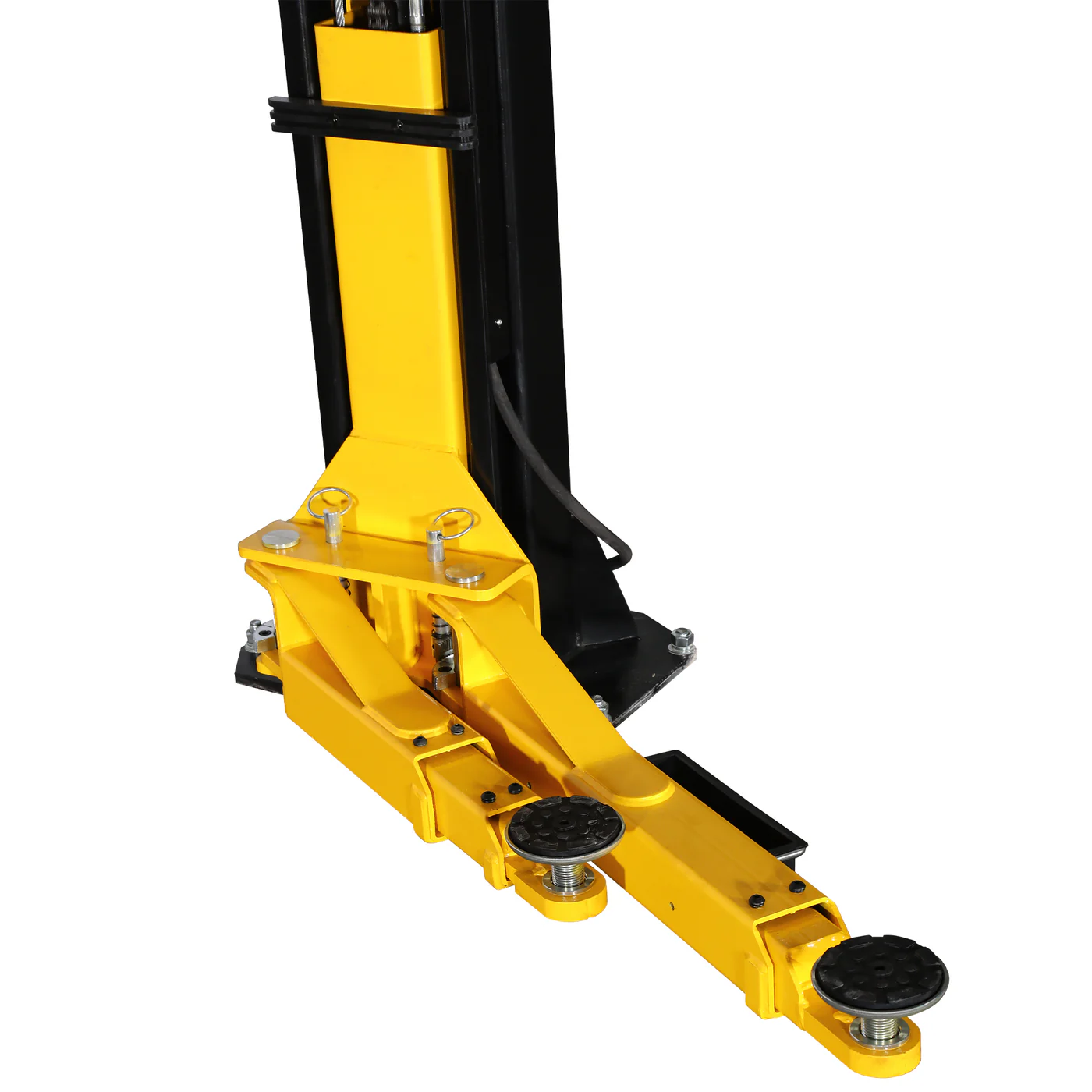

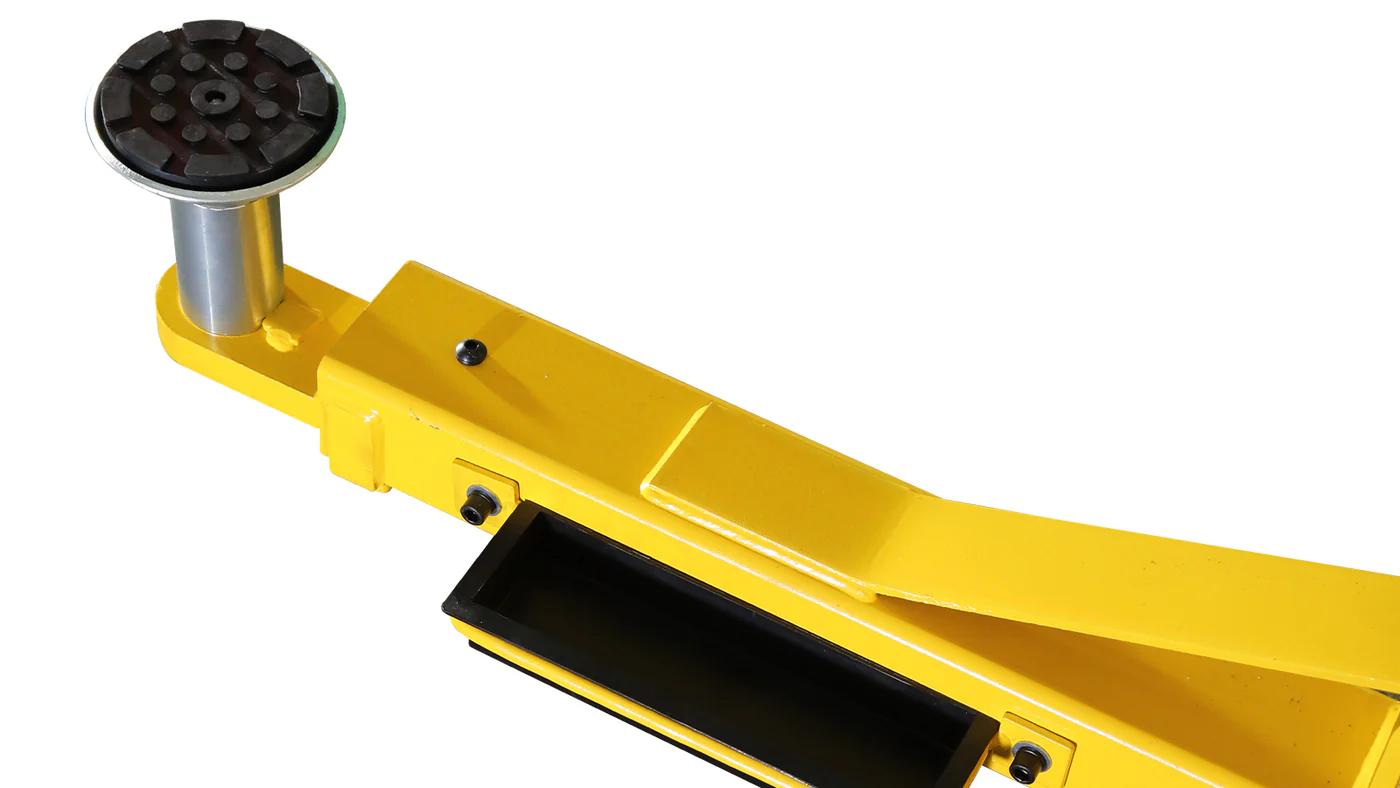

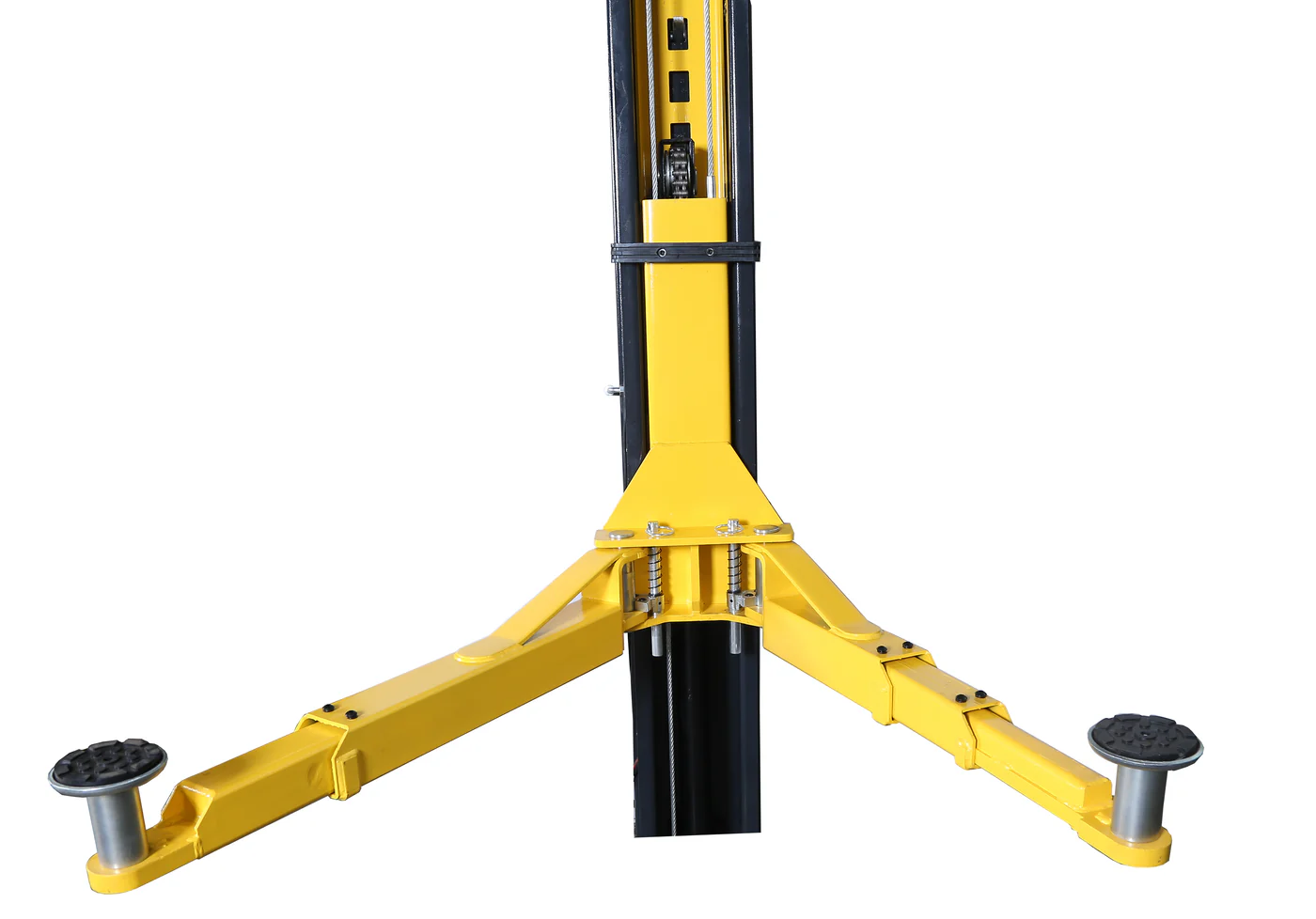

• Combo Arm Assembly (Symmetrical and Asymmetrical Use) — Adjustable arms to handle a wide range of vehicles.

• CE Certified Lift Structure and Hydraulic System — Tested to 115% dynamic and 150% static load capacities.

• Durable Robot-Welded Structure — Powder-coated finish for long-lasting protection.

• Truck Adapters Included — Achieve a maximum lift height of 81" with adapters.

• Wide Drive-Through Widths:

  • 104" Symmetrical Setup

  • 97" Asymmetrical Setup

• Heavy-Duty Construction:

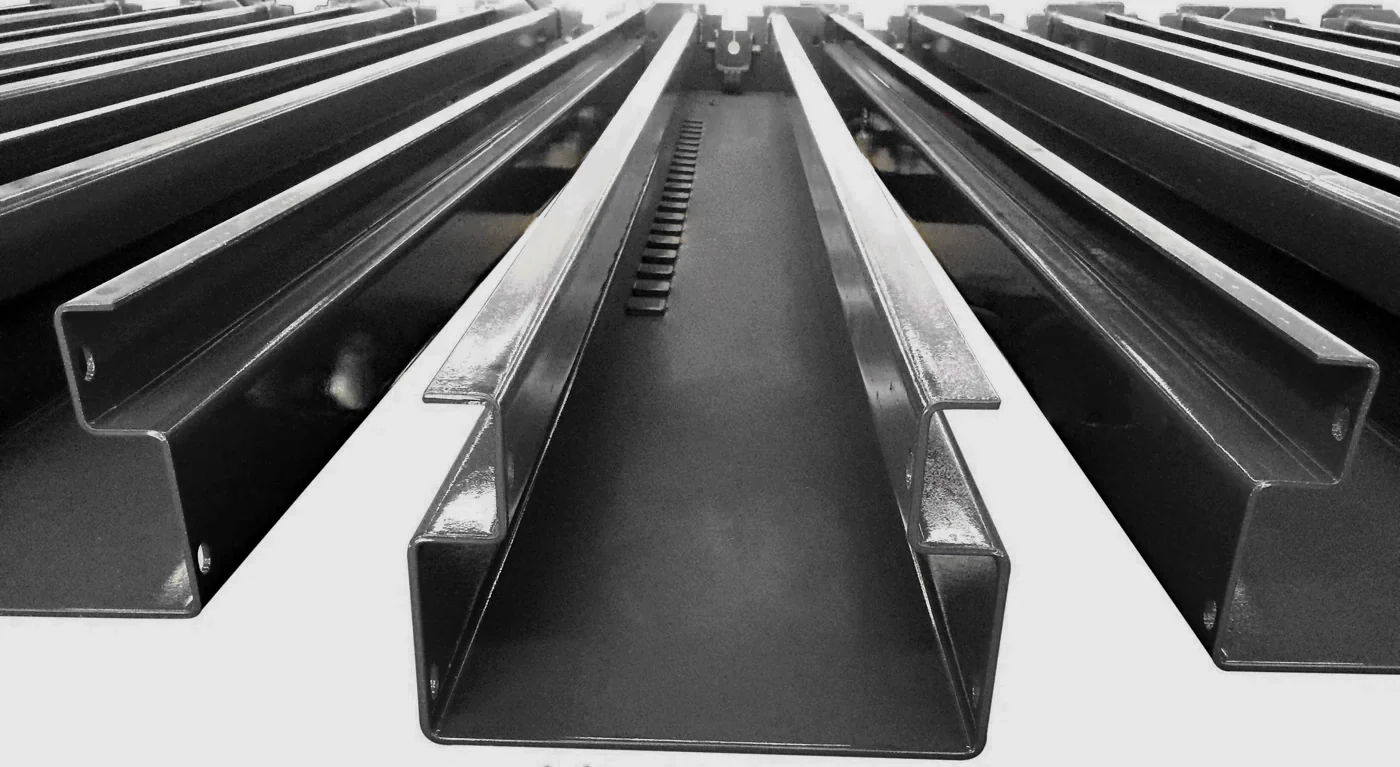

  • Double "S" Column Design

  • High-Strength Q355 Carriage Material

Specifications:

• Lifting Capacity: 10,000 LB

• Style: Overhead 2-Post Lift

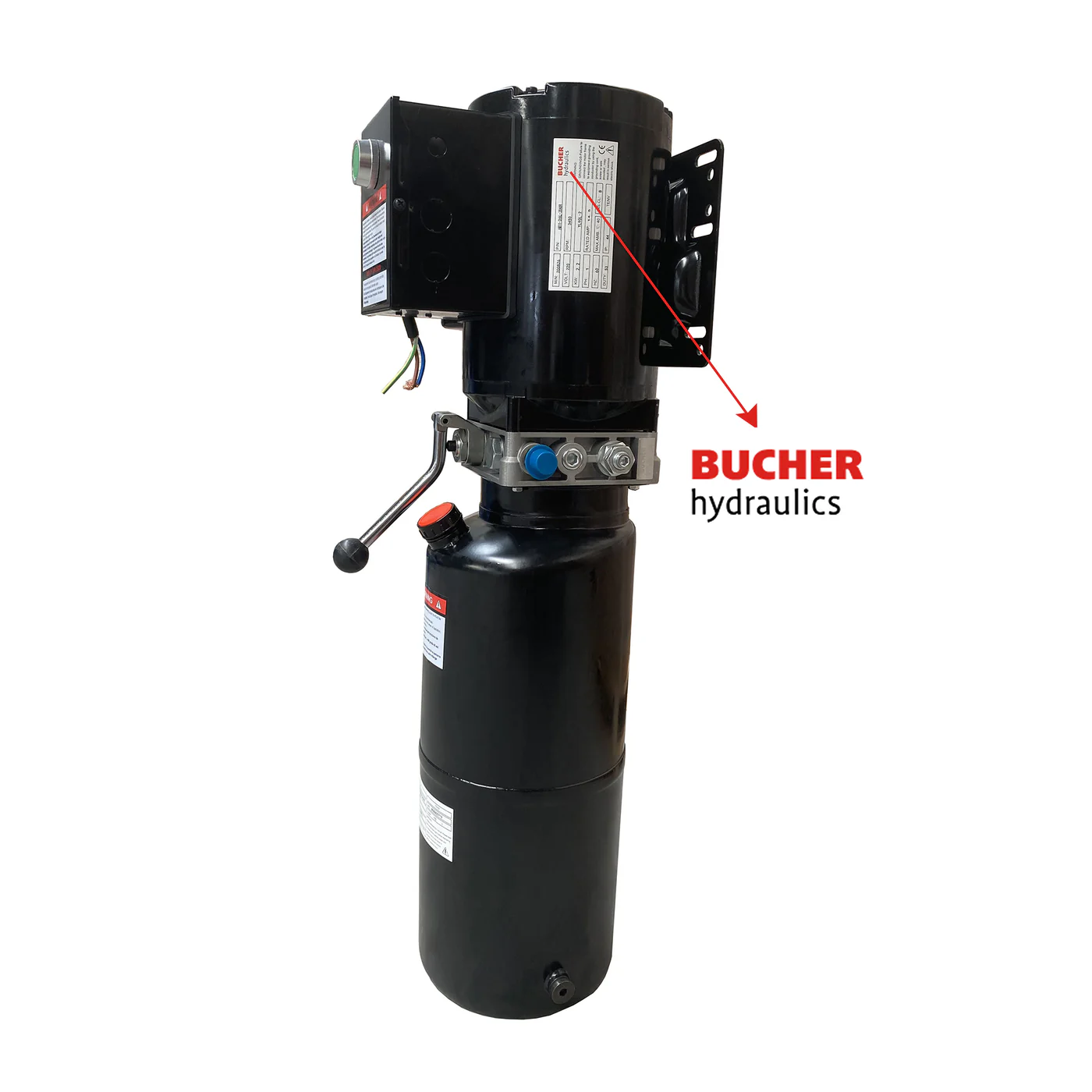

• Motor: 220V Single Phase, 3HP, 10A (Recommend 30A breaker)

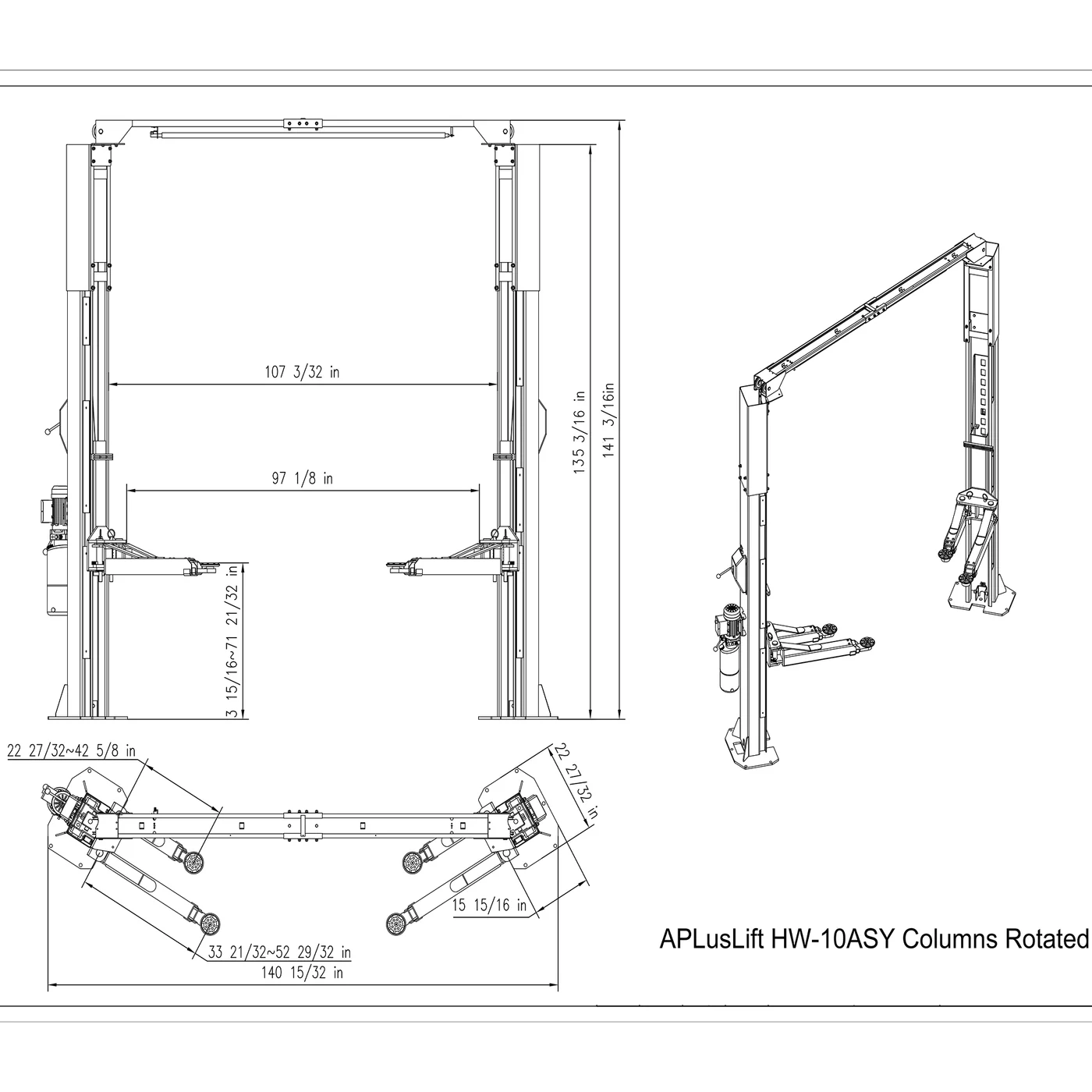

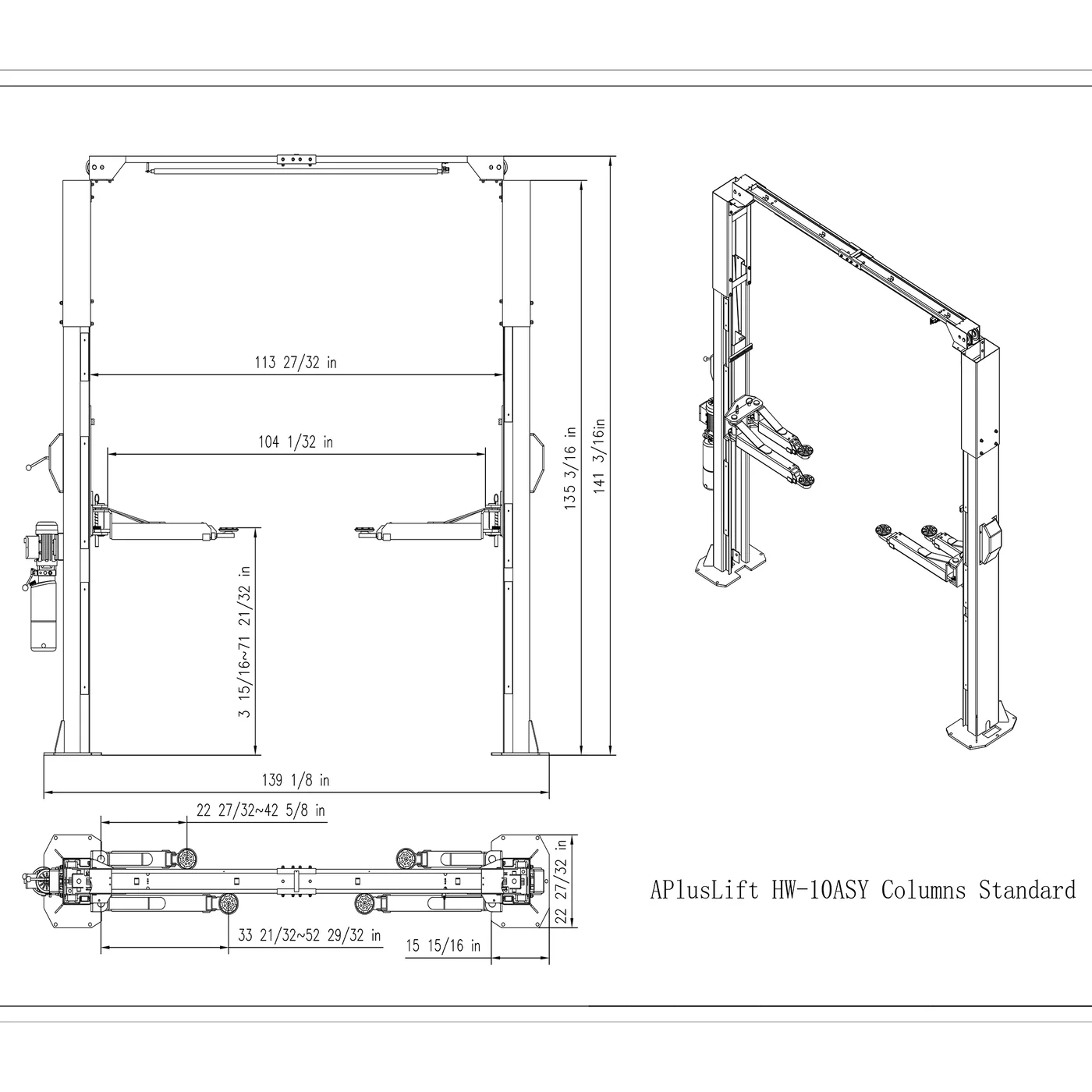

• Overall Height: 141 3/16"

• Overall Width:

  • 139 1/8" (Symmetrical)

  • 140 15/32" (Asymmetrical)

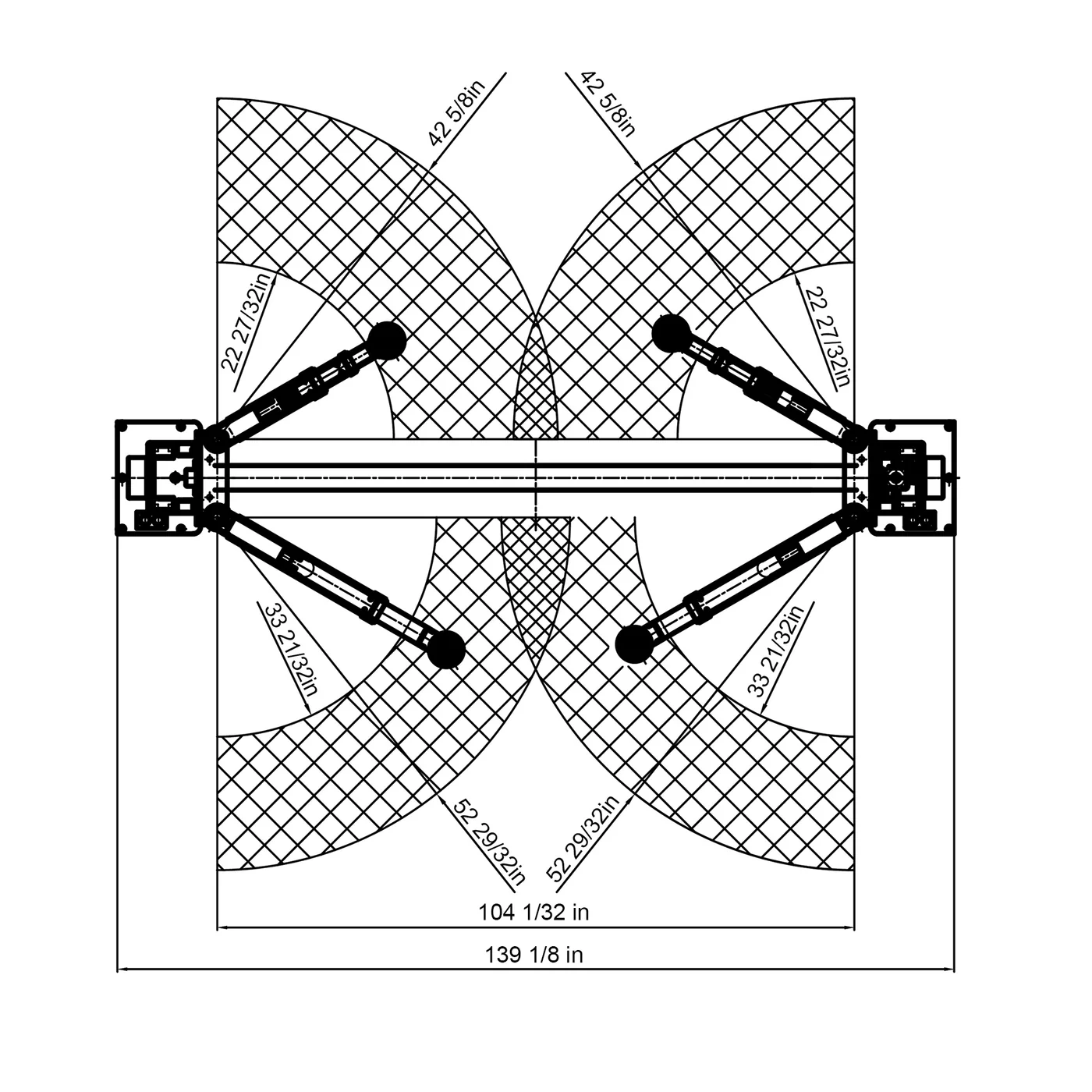

• Drive-Through Width:

  • 104" (Symmetrical)

  • 97" (Asymmetrical)

• Maximum Lift Height: 81" (with truck adapters)

• Minimum Pad Height: 4"

• Time to Full Rise: 50 seconds

• Shipping Weight: ~1470 LB + 120 LB

• Concrete Requirement: 6" thick at 3500 PSI (4" thick for vehicles under 9000LB)

Included Parts:

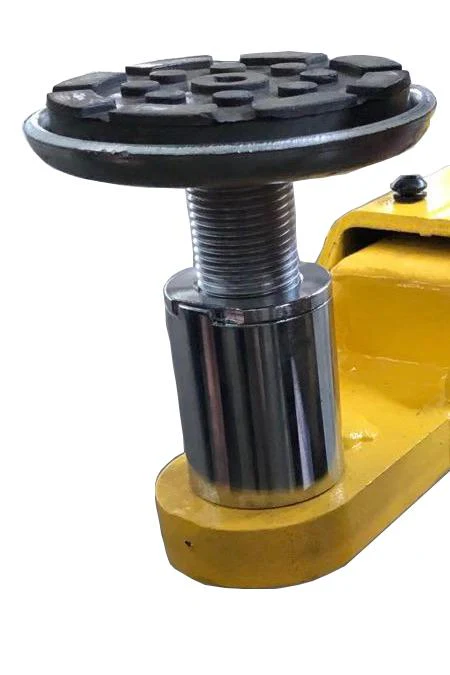

• 4 Adjustable Screw Pads

• 4 x 4" Tall Truck Adapters (Height Extensions)

• 10 Anchor Bolts

• 10 Shims

• 2 Tool Trays

• 2 Toe Guards

Build and Safety Highlights:

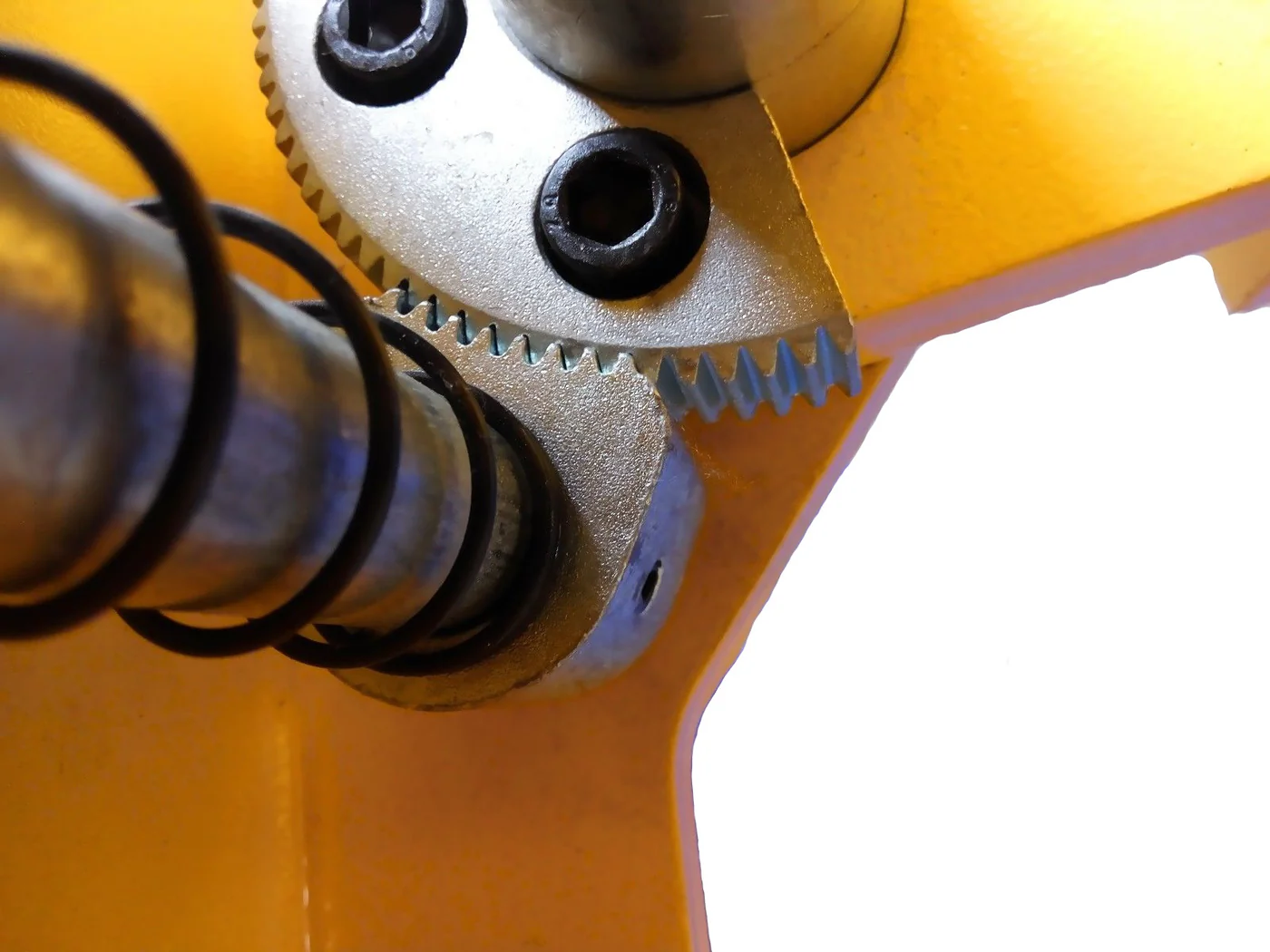

• Automatic Arm Lock Restraints

• Relief Valve built into power pump to prevent overloading

• Up-Limit Switch to protect hydraulic cylinder stroke

• Heavy Duty 3/8" Cables with 5" Pulleys — Longer cable life and smoother operation

• Door Guard Rubber Protection

• Ultra High Molecular Self-Lubricating Nylon Slider — Smooth carriage movement

• Strong 13/64" Column Steel Thickness

• Durable 5/8" Base Plate

Shipping & Pickup:

• FREE Shipping to the lower 48 states (forklift required on-site)



• Elevate your workspace with the strength, flexibility, and reliability of the APlusLift HW-10ASY — built for serious professionals and true car enthusiasts.
